안녕하세요. 오늘은 MAX98357A CLASS D 오디오 앰프 칩의 출력을 측정해보겠습니다.
* Class D 측정방식
Class D 앰프는 전력을 효율적으로 사용하기 위해 오디오 신호를 고속 PWM/PDM 스위칭으로 변조해 증폭하는 방식입니다.
BTL(Bridge-Tied Load) 구조에서는 출력이 스피커 +단과 −단 모두 스위칭 신호이므로, 단일 채널 측정으로는 실제 오디오 파형을 볼 수 없습니다.
따라서 다음 중 한 방법으로 측정해야 합니다.
방법 1: +단과 −단을 각각 채널로 측정 후, 차동(C1 − C2) 계산
방법 2: 차동 프로브 사용
이번 테스트에서는 방법 1을 사용했습니다.
* 측정 구성
ESP32와 MAX98357A를 이용해서 Class D 출력을 발생시켰고, Analog discovery 장비를 이용해서 측정했습니다.
스피커 +단 → 측정 장비 CH1
스피커 −단 → 측정장비 CH2
CH1−CH2 → 차동 파형
*사용 코드
ESP32에서 I2S를 이용해 1 kHz 사각파 톤을 생성하는 기본 예제를 사용했습니다.
/*
This example generates a square wave based tone at a specified frequency
and sample rate. Then outputs the data using the I2S interface to a
MAX08357 I2S Amp Breakout board.
I2S Circuit:
* Arduino/Genuino Zero, MKR family and Nano 33 IoT
* MAX08357:
* GND connected GND
* VIN connected 5V
* LRC connected to pin 0 (Zero) or 3 (MKR), A2 (Nano) or 25 (ESP32)
* BCLK connected to pin 1 (Zero) or 2 (MKR), A3 (Nano) or 5 (ESP32)
* DIN connected to pin 9 (Zero) or A6 (MKR), 4 (Nano) or 26 (ESP32)
DAC Circuit:
* ESP32 or ESP32-S2
* Audio amplifier
- Note:
- ESP32 has DAC on GPIO pins 25 and 26.
- ESP32-S2 has DAC on GPIO pins 17 and 18.
- Connect speaker(s) or headphones.
created 17 November 2016
by Sandeep Mistry
For ESP extended
Tomas Pilny
2nd September 2021
Lucas Saavedra Vaz (lucasssvaz)
22nd December 2023
anon
10nd February 2025
*/
#include <ESP_I2S.h>
// The GPIO pins are not fixed, most other pins could be used for the I2S function.
#define I2S_LRC 25
#define I2S_BCLK 5
#define I2S_DIN 26
const int frequency = 1000; // frequency of square wave in Hz
const int amplitude = 10000; // amplitude of square wave
const int sampleRate = 8000; // sample rate in Hz
i2s_data_bit_width_t bps = I2S_DATA_BIT_WIDTH_16BIT;
i2s_mode_t mode = I2S_MODE_STD;
i2s_slot_mode_t slot = I2S_SLOT_MODE_STEREO;
const unsigned int halfWavelength = sampleRate / frequency / 2; // half wavelength of square wave
int32_t sample = amplitude; // current sample value
unsigned int count = 0;
I2SClass i2s;
void setup() {
Serial.begin(115200);
Serial.println("I2S simple tone");
i2s.setPins(I2S_BCLK, I2S_LRC, I2S_DIN);
//i2s.setInverted(true, false, false);
// start I2S at the sample rate with 16-bits per sample
if (!i2s.begin(mode, sampleRate, bps, slot)) {
Serial.println("Failed to initialize I2S!");
while (1); // do nothing
}
}
void loop() {
if (count % halfWavelength == 0) {
// invert the sample every half wavelength count multiple to generate square wave
sample = -1 * sample;
}
// Left channel, the low 8 bits then high 8 bits
i2s.write(sample);
i2s.write(sample >> 8);
// Right channel, the low 8 bits then high 8 bits
i2s.write(sample);
i2s.write(sample >> 8);
// increment the counter for the next sample
count++;
}

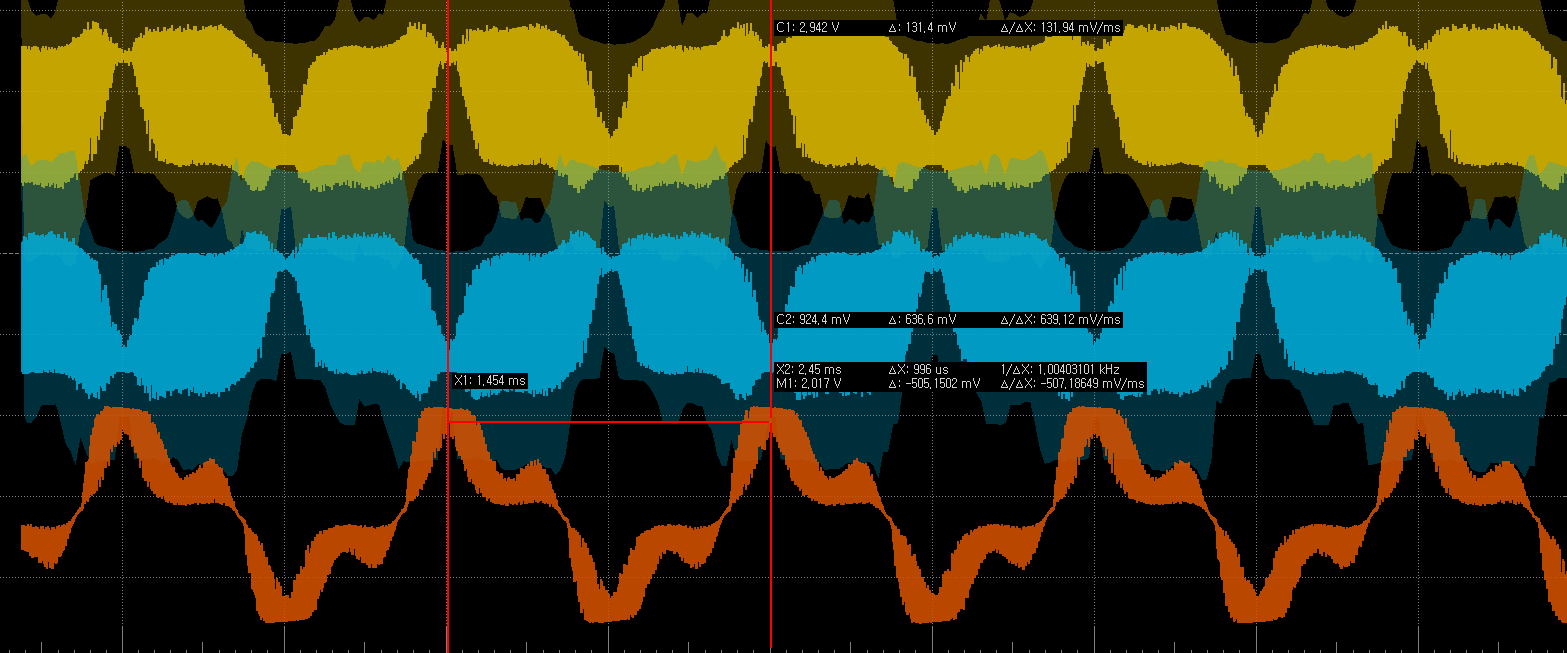

*측정결과
노랑 : 스피커+
파랑 : 스피커-
주황 : 차동 (스피커+) - (스피커-)
결과적으로 약 1 kHz의 오디오 신호가 출력됨을 확인했습니다.
